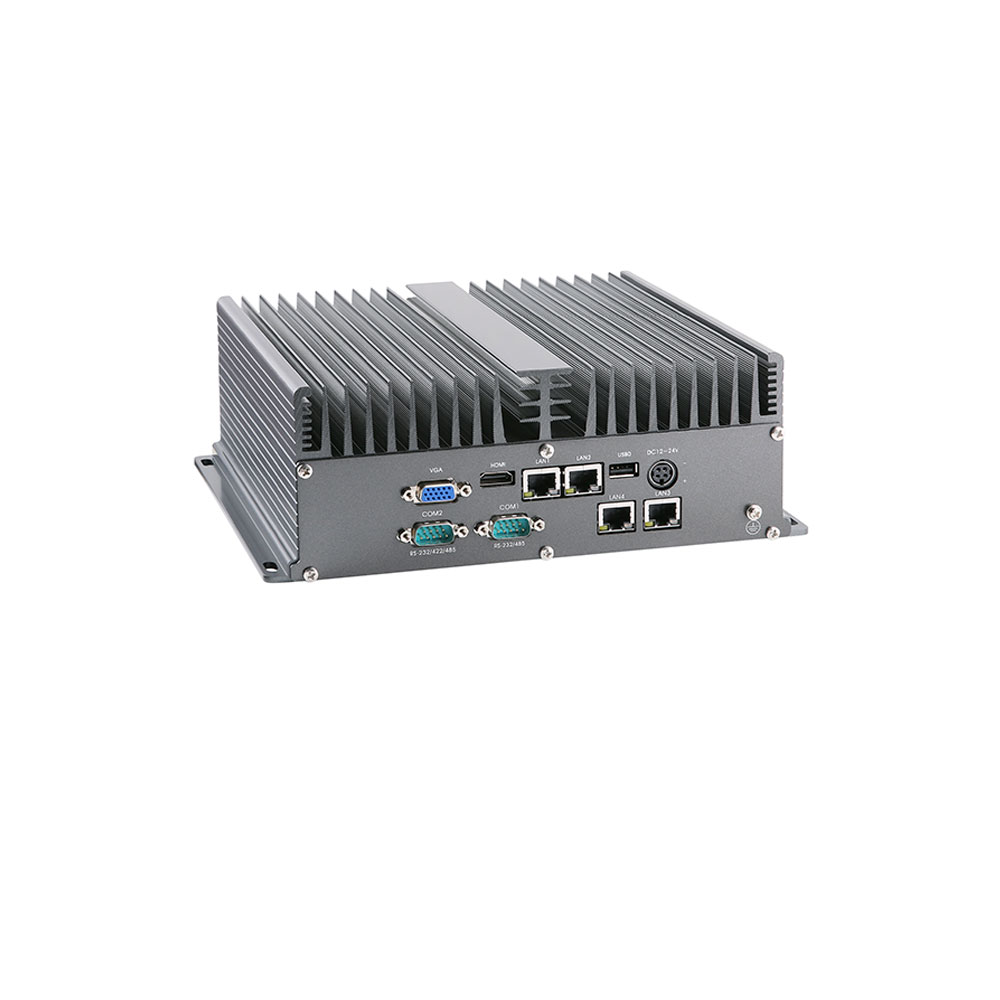

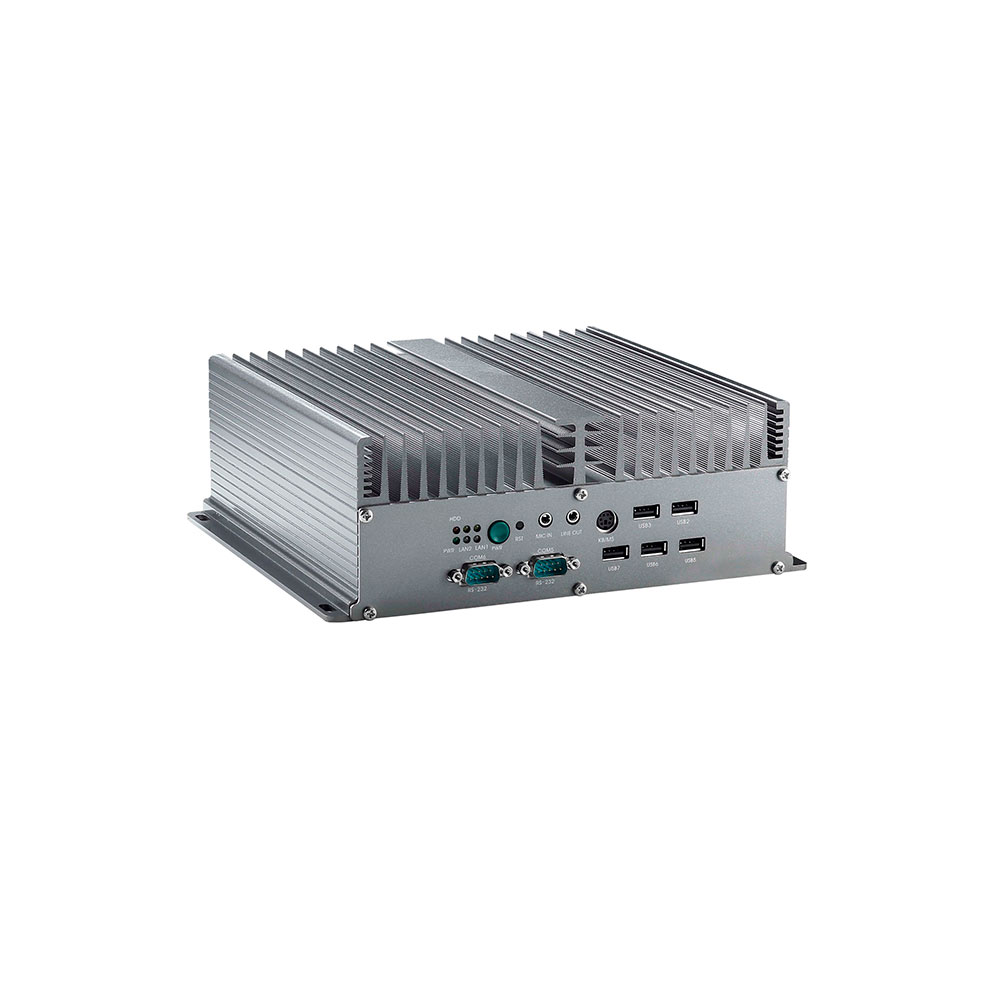

ABOX-7812

  • 处理器:i5-3210M i7-3520M
  • 规 格:4串+4LAN
  • 类 别:高性能工控机
详细信息

CPU: Intel Core i5-3210M i7-3520M GPU
芯片组: Intel HM76
内存: DDR3 SO-DIMM
I/O端口:1*LINE OUT&MIC,6*USB,4*LAN,1*HDMI,1*VGA,1*KB/MS
串口:2*RS-232,2*RS-232/422/485
看门狗:256级,可编程时间到中断、时间到系统复位
存储空间:1*2.5"SATA盘位
扩展总线:1个标准mPCIEx1接口或mSATA
输入电源:DC_IN 12~24V
产品尺寸:246*209*84mm(W*D*H)

System Hardware Processor Intel® Core™ i5-3320M Processor (3M Cache, up to 3.30 Ghz)
BIOS 32Mb AMI SPI
Chipset Intel HM76
Memory 2*204 Pin SO-DIMM socket, 4GB (up to 16GB Max. Capacity ) DDR3 installed
Storage One Drive Bay for SATA 2.5" HDD, 1*MSATA(SSD) space
Watchdog Timer Programmable 256 levels timer interval,setup by software
Audio Intel HD Graphics 4000
Ethernet 4*10/100/1000 Mbps Ethernet Controller
Graphics Engine Intel® HD Graphics
External I/O Interface Ethernet
4 (RJ-45)
LAN1,10/100/1000Mbps intel 82583V,suports wake on LAN/PXE
LAN2,10/100/1000Mbps intel 82583V,suports wake on LAN/PXE
LAN3,10/100/1000Mbps intel 82574L,suports wake on LAN/PXE
LAN4,10/100/1000Mbps intel 82574L,suports wake on LAN/PXE
Audio 1*LINE OUT & MIC-IN
USB Port 4*USB
Display 1*HDMI, Supports resolution up to 2560 x 1600@60Hz
1*VGA,Supports resolution up to 2048*1152@60Hz
Serial Port 2*RS-232, 1*RS-232/485, 1*RS-232/422/485
Internal I/O Interface USB 3*USB2.0 pin header
PS/2 1*PS/2 KB/MS
LVDS 1*18/24-bit LVDS (Optional)
LPT 1*LPT (Optional)
SIM 1*SIM slot
DIO 1*16-bit DIO (Optional)
General Power Input Votage DC_IN 12V~24V
Power Adapter AC to DC, DC12V 90W (Optional)
Expansion slot 1*MINI PCIEx1 (with SIM slot)
1*MINI PCIEx1(supports MSATA by the code switch)
Dimensions (W x Dx H) 246 x 209 x 84 mm
Colour Iron gray
Mounting Stand/ Wall
Enclosure Aluminum Housing
Thermal Solution Fanless
Environment Operating Temperature -10 ~ 60°C
Storage Temperature -40 ~ 80°C
Relative Humidity 5~ 95%  (non-condensing)
