BASIC INFO
| Model No. | PCM3-A1900 |
| Processor system | Intel J1900 GPU ( Optional ) |
| Chipset | Intel J1900 |
| Memory | DDR3L 4GB |
|
Display |
Graphics HD4000, Support Direct x11, CRT/LVDS (dual 18/24 bit) display output ; CRT display resolution up to 2048x1536 with 32-bit color at 75 Hz; LVDS display resolution up to 1920x1200 at 60 Hz |

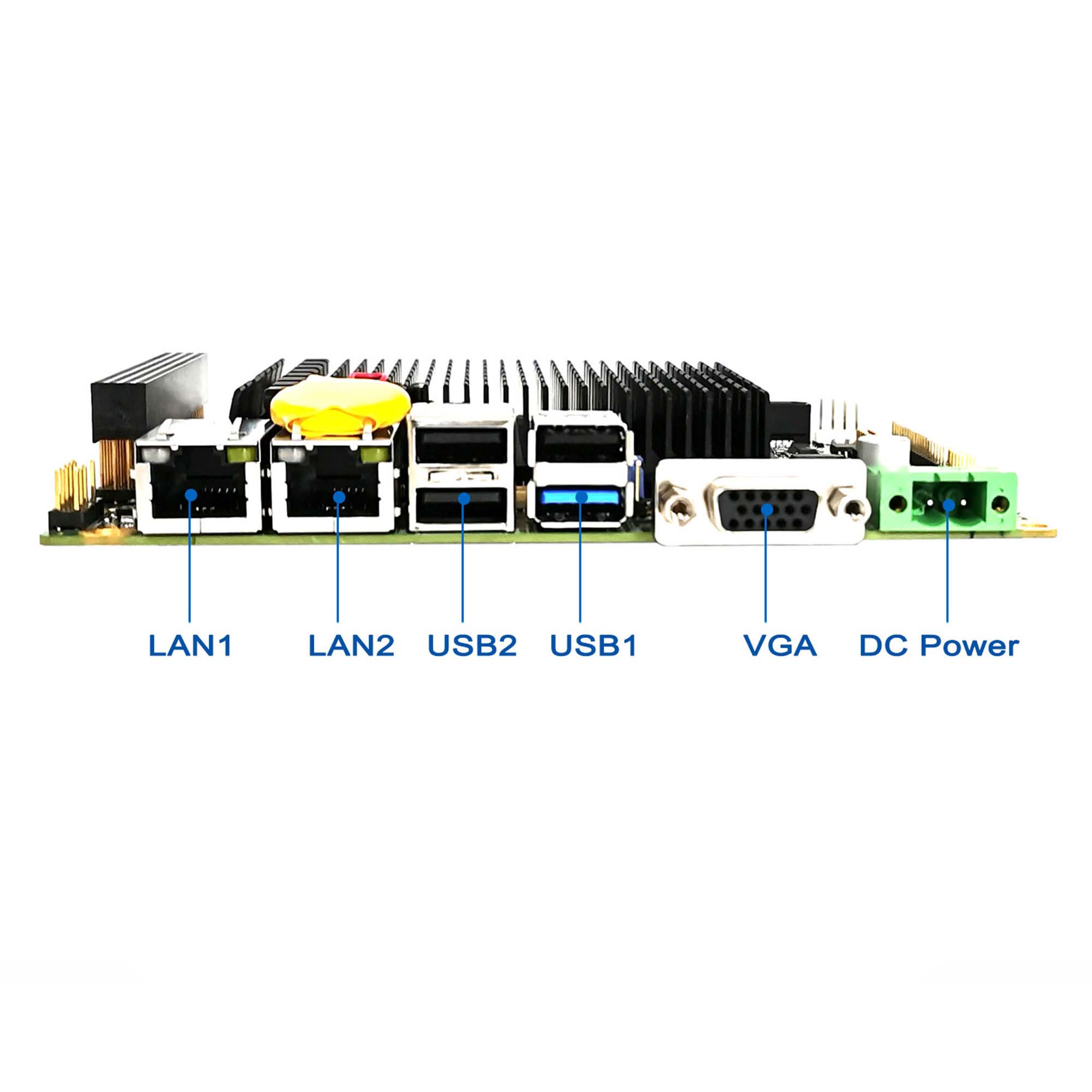

| Serial Port | RS232 x 4 (COM1~COM4), RS-232/485 x 2 (COM5-6) |
| USB Port | 6*USB2.0 |
| Ethernet | 2*10/100/1000 Mbps Ethernet Controller,Support WOL/PXE |
| Audio | High Definition Audio (HD), Audio input/output header, Support Line-in/Line out/Mic-in |
| Expansion | 1*PCI-104 bus expansion slot, expand 4*32-bit PCI devices |
| 1*Mini PCIE X1 ( M-SATA optional) | |
| Storage | 1*SATA II interface |
| KB/MS | 1*PS/2 Pin header |
| GPIO | 1*16 bit DIO interface |
| Parallel Interface | 1* LPT Parallel header |
| Watchdog Timer | Programmable 256 levels timer interval,Output System reset |
|
Power |
DC 12V power input |
|
ACPI Power Management |
|
|
One external 2-pin pitch 5.08mm DC power socket, or 1 internal 2*2P pitch 4.2mm, Line spacing 5.5mm white DC power socket |
|
|
Operational Temperature |
-20 ~ 60° C |
|
Non-Operational Temperature |
-40 ~ 85° C |
|
Operational Humidity |
5~ 95% (non-condensing) |
|
Dimensions (L x W) |
146 x 102 mm (5.7" x 4"), same as 3.5 |
