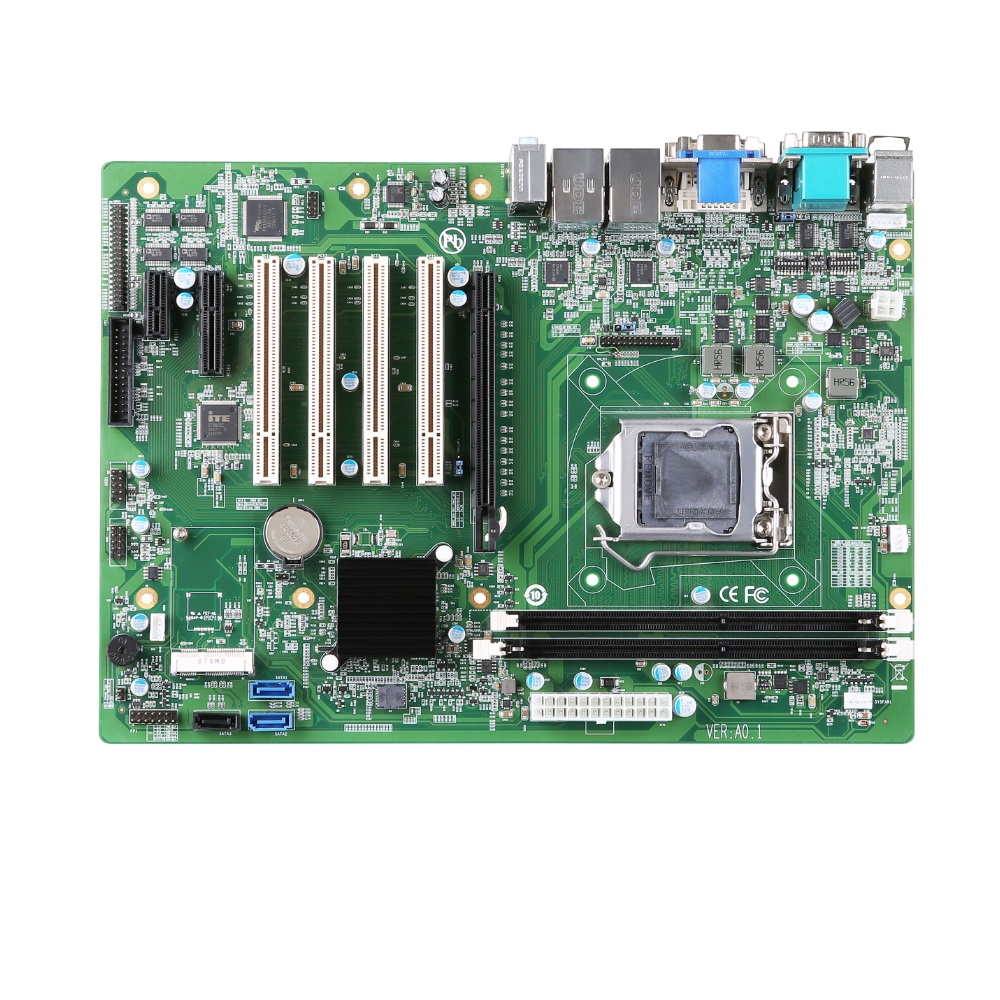

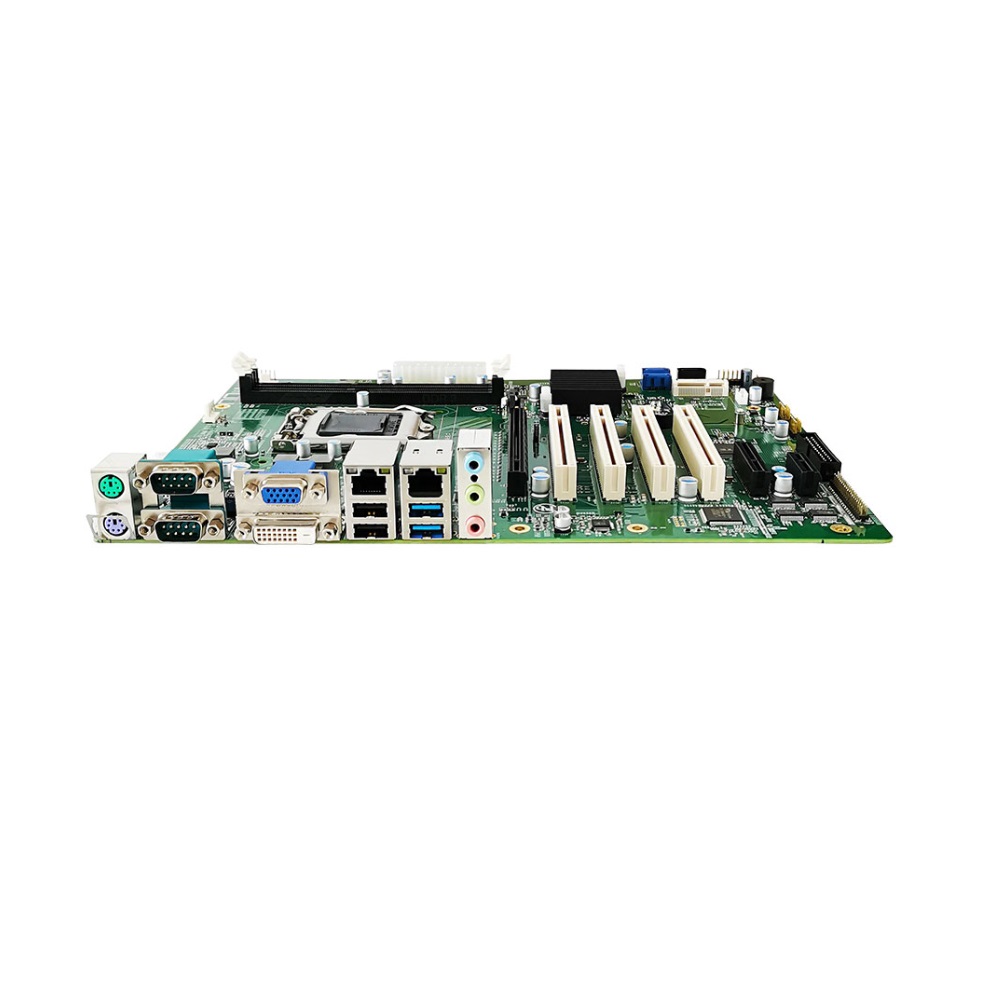

AIMB-H81E

  • Chipset:intel H81
  • IO:2LAN+6COM+6USB
  • Memory:2*240Pin DDR3\L
  • Size:305*220mm
BASIC INFO
CPU
1 x LGA1150 CPU socket;
supports 4th Intel ®Core(i3/i5/i7)、Intel ®Pentium、 Intel ®Celeron processor;
Chipset
intel H81
Memory
2 x DDR3/DDR3L DIMM system memory slot;
supporting 1333/1600MHz system memory, with a maximum memory capacity of 16.0GB
Display output
CRT(Max:1920x1200 @ 60Hz)
DVI (Max:1920x1200 @ 60Hz)
EDP(B85)
Expansion Slots
1 x 164Pin PCIE x16 SLOT
2 x 64Pin PCIE x4 SLOT(Maximum supported PCIe x2 rate)
4 x 120Pin PCI SLOT
Ethernet
2 x Intel 10 / 100 / 1000mbs network controller (i219-v x 1, i211-at x 3);
supporting network boot up (PXE) and wake on network (WOL) functions;
AUDIO HD Audio, Line_Out / Line_In / MIC
Storage 3 x 7Pin SATA II;
1 x mSATA
USB 4 x USB3.0,5 x USB2.0
COM 1 x RS-232/485(COM1).1 x RS-232/422/485(COM2).4 x RS-232
other
1 x LPT、1 x 8-Bit GPIO、1 x SIM、1 x PS/2、256 level watchdog timer and other functions
Power output
ATX


Size
305mm ×220mm
Work environment
Temperature: - 20 ° C ~ 60 ° C (wide temperature storage device is required)
Humidity: 5% ~ 95% (non condensing state)
Storage environment
Temperature: - 40 ° C ~ 80 ° C
Humidity: 5% ~ 95% (non condensing state)
