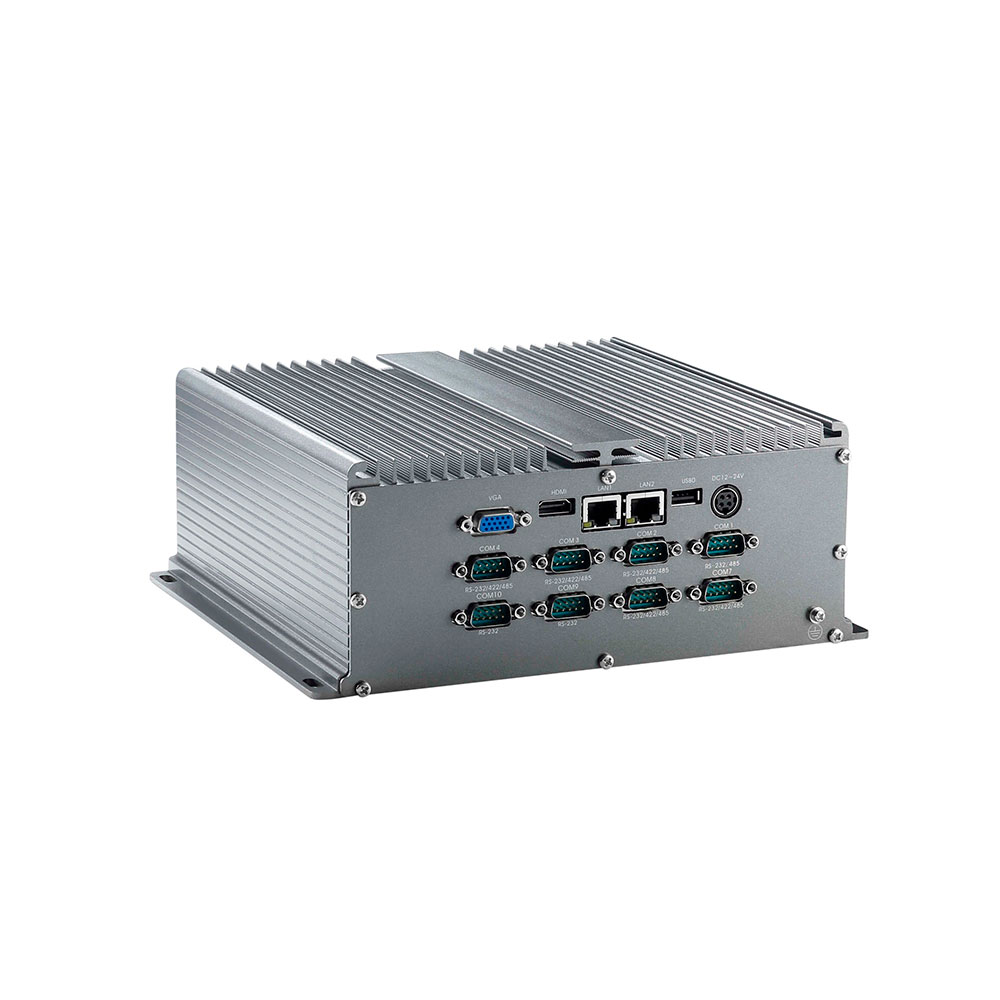

ABOX-9716

  • 处理器:D2550
  • 规 格:10串+2LAN
  • 类 别:嵌入式工控机
详细信息

CPU:Intel  Atom D2550 1.86GHz/1MB GPU
芯片组:Intel NM10
内存:204Pin DDR3 SO-DIMM
I/O端口:1*LINE OUT&MIC,6*USB,2*LAN,1*HDMI,1*VGA,1*KB/MS
串口:4*RS-232,1*RS-232/485,5*RS-232/422/485
看门狗:256级,可编程时间到中断、时间到系统复位
存储:1*2.5"SATA盘位
扩展槽:无
扩展总线:1个标准mPCIEx1或mSATA接口
电源:DC_IN 12V~24V
尺寸:246*209*93mm(W*D*H)

Processor System CPU Intel  Atom 1.86GHz/1MB D2550 GPU
Chipset Intel CG82NM10(NM10)
BIOS 32Mb AMI BIOS
Memory Max. Capacity 4GB DDR3 Memory installed (up to 4.0GB Max. Capacity )
Socket 1*204Pin DDR3 SO-DIMM
Graphics Controller Intel HD Graphics
Ethernet LAN 2*10/100/1000 Mbps Ethernet Controller, Support PXE/WOL
Audio Interface HD Audio ,1*Line-out, 1* Mic-in
Storage HDD 1 x SATA HDD Bay for 2.5"
1 x mSATA
Expansion Slot NO No
External I/O Interface Serial Port 4*RS-232, 1*RS-232/485, 5*RS-232/422/485
USB 6*USB
Audio 1*LINE OUT & MIC
LAN 2*RJ45
KB/MS 1*PS/2
Display 1*VGA, 1*HDMI
Watchdog Watchdog timer Programmable 256 levels timer interval, setup by software
Power Requirements Power Input Votage DC_IN 12~24V
Power Adapter AC-to-DC Adapter, DC12V/7.5A 90W (Optional),with DC Jack Plug
Power cable With plug USA type/ Europe type/UK type (by requirement)
Software Support Microsoft Windows XP,Win7/8/10,windows 2008
Linux Support (by project)
General Dimensions (W x Dx H) 246 x 209 x 93mm
Case Colour Iron gray
Mounting Stand/ Wall
Enclosure Aluminum Housing
Thermal Solution Fanless
Environment Operating Temperature -20 ~ 60°C
Storage Temperature -40 ~ 80°C
Relative Humidity 5~ 95%  (non-condensing)
