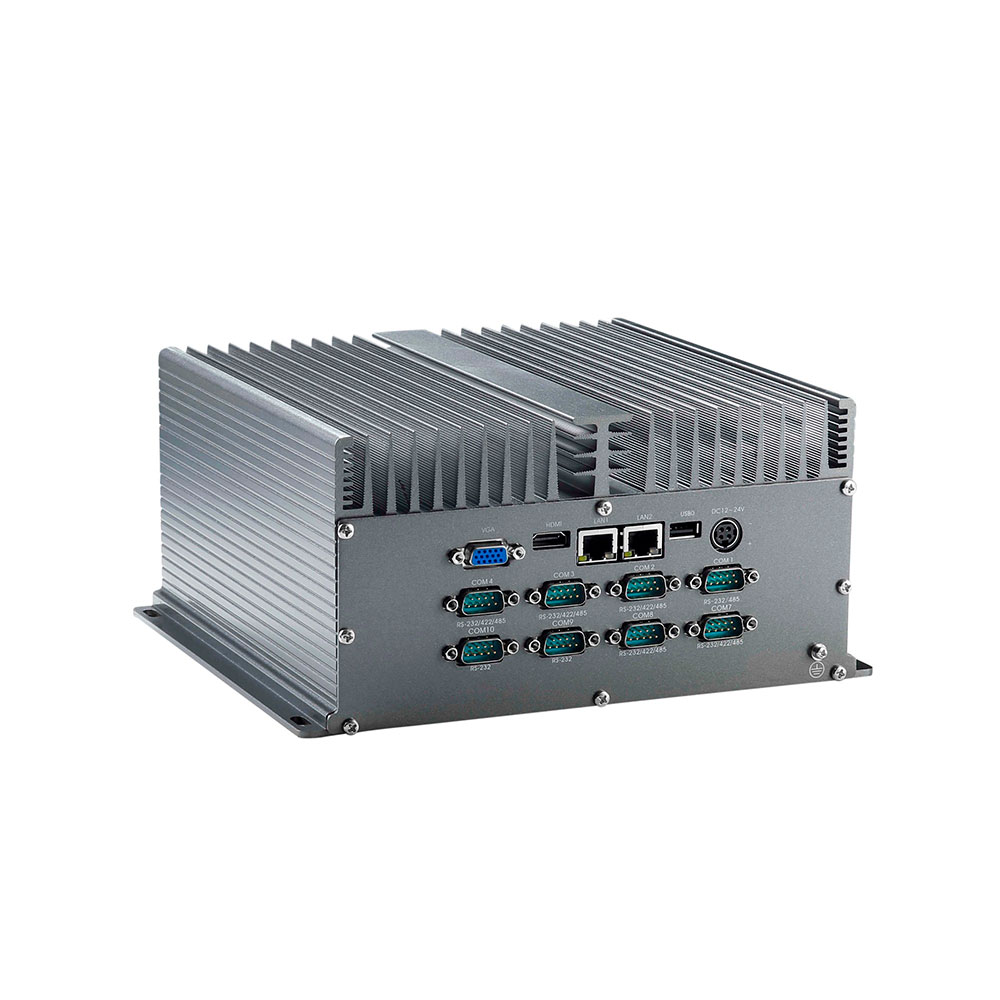

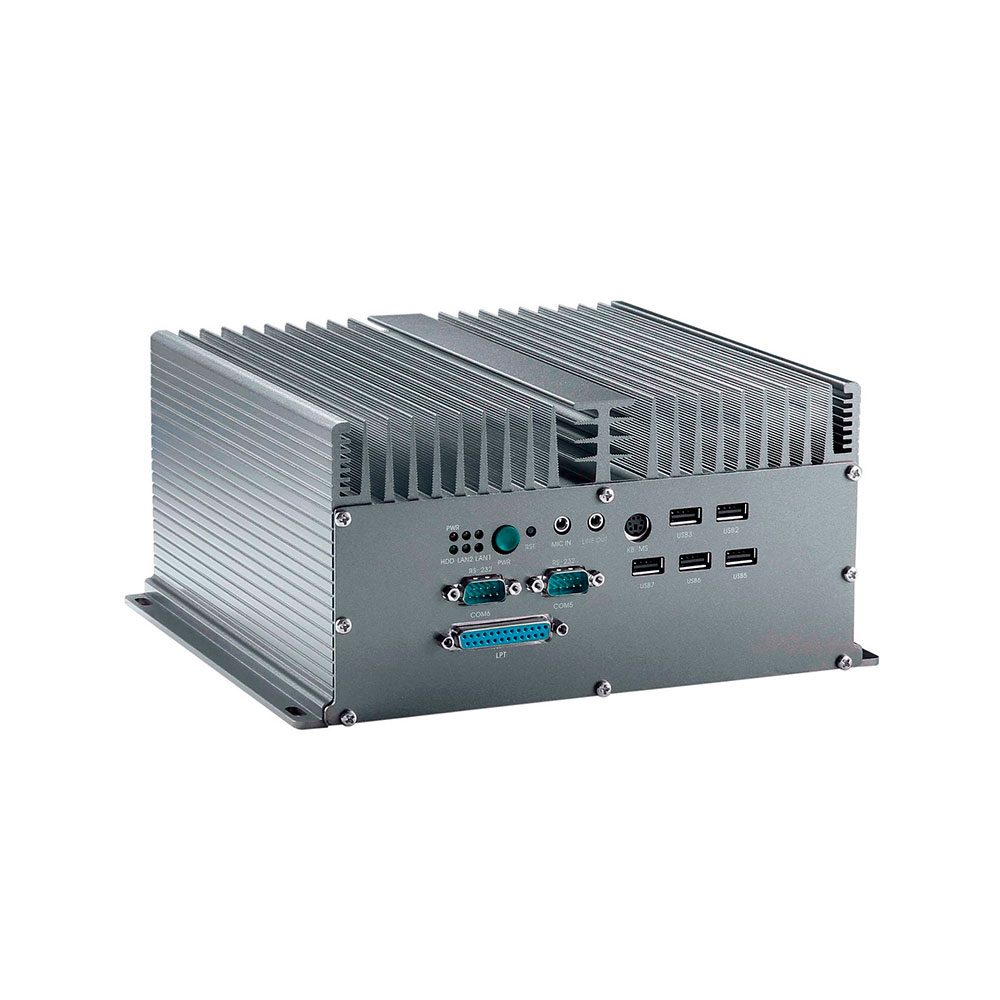

ABOX-9816

  • 处理器:i7-3520M/i5-3210M
  • 规 格:10串+2LAN
  • 类 别:高性能工控机
详细信息

CPU: intel Core i7-3520M/i5-3210M GPU
芯片组: IntelHM76
内存: DDR3 SO-DIMM
I/O端口:1*LINE OUT&MIC,6*USB,2*LAN,1*HDMI,1*VGA,1*KB/MS
串口:4*RS-232,1*RS-232/485,5*RS-232/422/485
看门狗:256级,可编程时间到中断、时间到系统复位
存储:1*2.5"SATA盘位
扩展总线:1个标准mPCIEx1接口或mSATA
电源:DC_IN 12~24V
尺寸:246*209*114mm(W*D*H)

Processor System CPU Intel® Core™ i5-3320M Processor (3M Cache, up to 3.30 Ghz)
Chipset Intel BD82HM76
BIOS 32Mb AMI SPI
Memory Max. Capacity up to 8.0GB Max. Capacity
Socket 1*204Pin DDR3 SO-DIMM socket
Graphics Controller Intel® HD Graphics 4000
Ethernet LAN 2*10/100/1000 Mbps Ethernet Controller, Support PXE/WOL
Audio Interface HD Audio,1*Line-out, 1* Mic-in
Storage HDD 1 x SATA HDD Bay for 2.5"
1 x Msata
Expansion Mini PCIE 1*mPCIEx1 or 1*Msata
External I/O Interface Serial Port 4*RS-232, 1*RS-232/485, 5*RS-232/422/485
USB 6*USB
Audio 1*LINE-OUT & MIC-IN
LAN 2*RJ45
KB/MS 1*KB, 1*MS
Display 1*VGA, 1*HDMI
Inner I/O Interface SIM 1*SIM Slot (Optional)
LPT 1*LPT (Optional)
DIO 1*16-bit DIO (Optional)
Watchdog Watchdog timer Programmable 256 levels timer interval, setup by software
Power Requirements Power Input Votage DC_IN 12~24V
Power Adapter AC-to-DC Adapter, DC12V 7.5A 90W (Optional),with DC Jack Plug
Power cable With plug USA type/ Europe type/UK type (by requirement)
Software Support Microsoft Windows XP,Win7/8/10,windows 2008
Linux Support (by project)
General Dimensions (W x Dx H) 246 x 209 x 114mm
Case Colour Iron gray
Mounting Stand/ Wall
Enclosure Aluminum Housing
Thermal Solution Fanless
Environment Operating Temperature -20 ~ 60°C
Storage Temperature -40 ~ 80°C
Relative Humidity 5~ 95%  (non-condensing)
