CPU：板载 Intel Atom D525 GPU
芯片组：Intel 82801+ICH8-M
内存：板载2.0GB
I/O端口：2*LAN,1*HDMI,1*VGA,1*音频,4*USB
串口：6个串口（2*RS-232,1*RS-232/485,3*RS-232/422/485）
看门狗:256级,可编程时间到中断、时间到系统复位
存储空间:1*2.5"SATA盘位,1*mSATA,1*CF槽位(可选购）
扩展总线:1个标准PCI-104总线接口
扩展槽位:无
输入电源:DC_12~24V
产品尺寸:220*205*57mm（W*D*H)

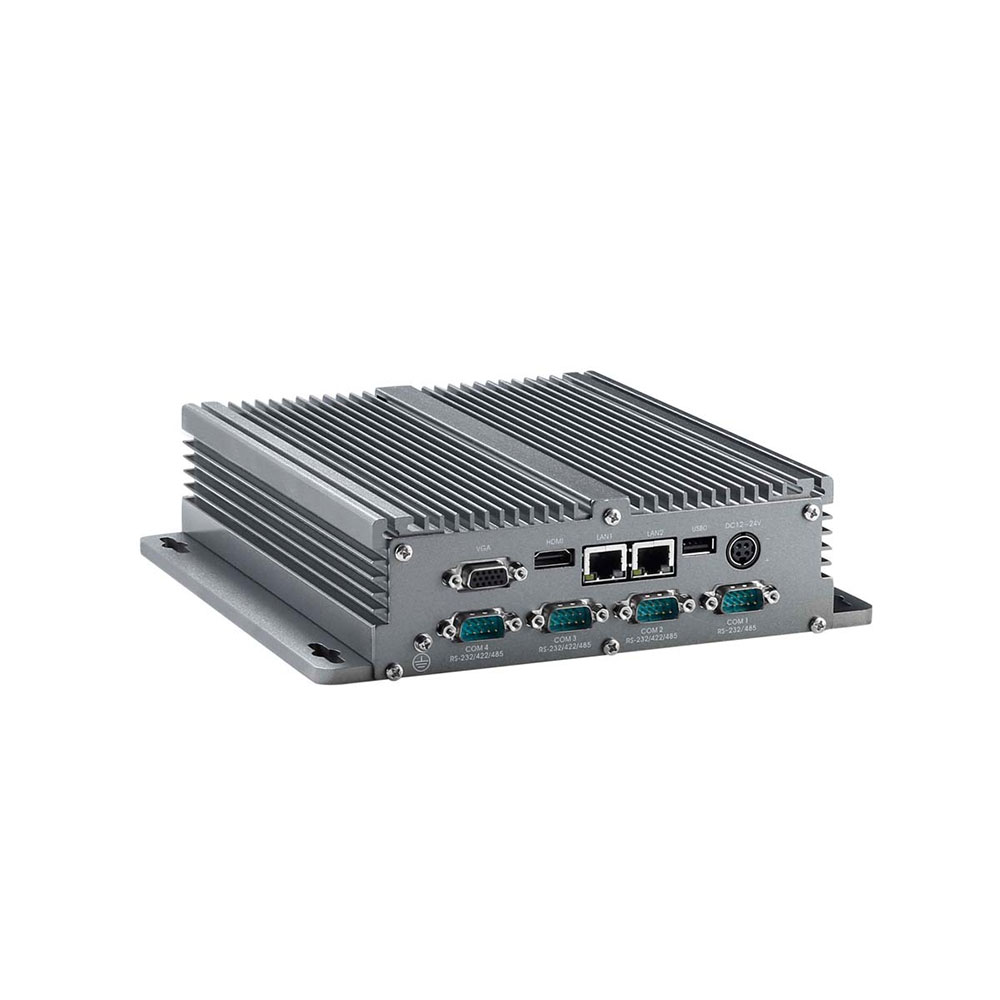

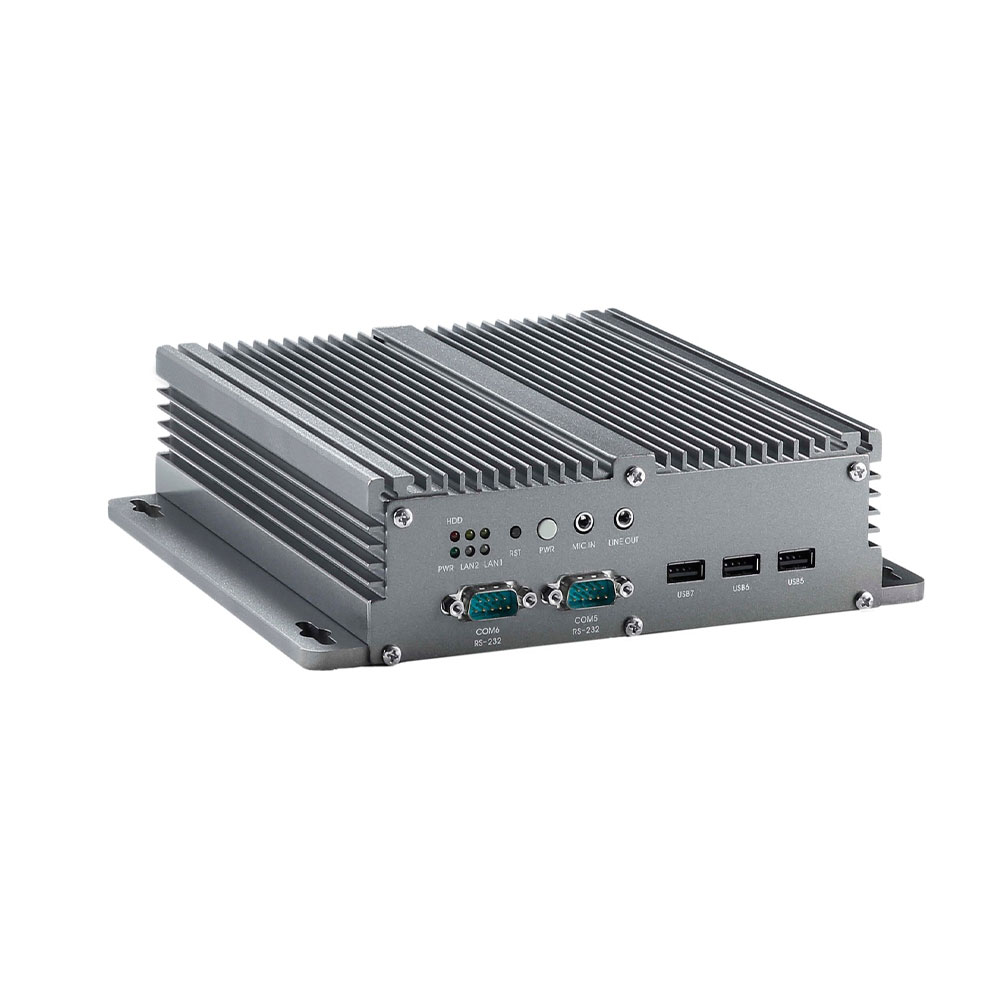

Model No.
ABOX-6512
Processor System
CPU
Intel Atom® Processor D525 (1M Cache, 1.80 Ghz)
Chipset
Intel® 82801HBM(ICH8-M)
BIOS
8Mb AMI BIOS
Memory
Max. Capacity
On-board 2GB DDR3 Memory
Graphics
Controller
Intel®GMA3150
Ethernet
LAN
2*10/100/1000 Mbps Ethernet Controller, Support PXE/WOL
Audio
Interface
HD Audio ,1*Line-out, 1* Mic-in
Storage
HDD
1 x SATA HDD Bay for 2.5"
1 x mSATA
1*CF Slot (Optional)
Expansion Slot
NO
No
External I/O Interface
Serial Port
2*RS-232, 1*RS-232/485, 3*RS-232/422/485
SIM
1*SIM Slot (Optional)
USB
4*USB
Audio
1*LINE OUT & MIC
LAN
2*RJ45
Display
1*VGA, 1*HDMI
Watchdog
Watchdog timer
Programmable 256 levels timer interval, setup by software
Power Requirements
Power Input Votage
DC_IN 12~24V
Power Adapter
AC-to-DC Adapter, DC12V/5A 60W (Optional),with DC Jack Plug
Power cable
With plug USA type/ Europe type/UK type (by requirement)
Software Support
Microsoft Windows
XP,Win7/8/10，windows 2008
Linux
Support (by project)
General
Dimensions (W x Dx H)
220 x 205 x 57mm
Case Colour
Iron gray
Mounting
Stand/ Wall
Enclosure
Aluminum Housing
Thermal Solution
Fanless
Environment
Operating Temperature
-20 ~ 60°C
Storage Temperature
-40 ~ 80°C
Relative Humidity
5~ 95% (non-condensing)
