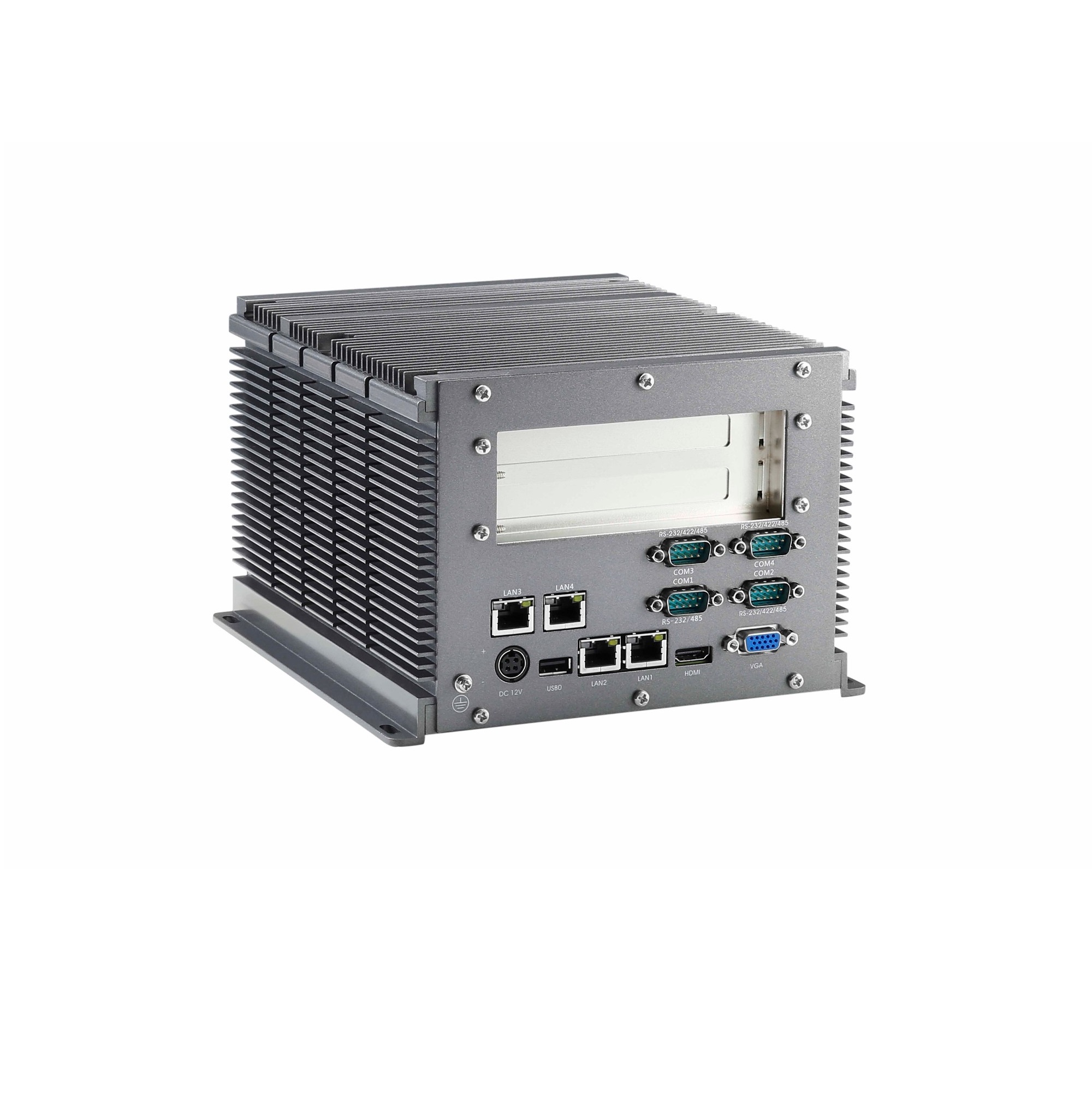

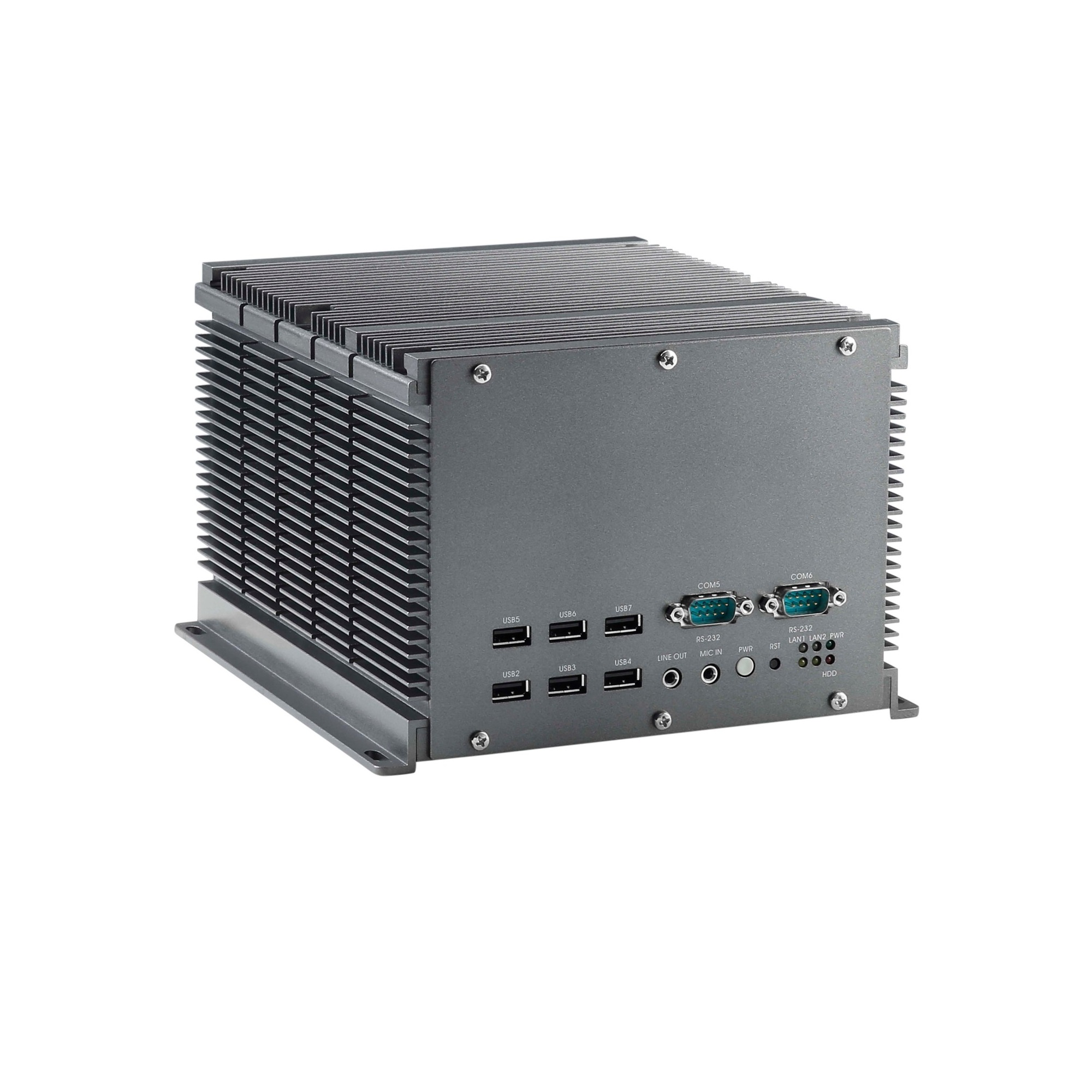

ABOX-7418

  • 处理器:P8600
  • 规 格:6串+4LAN
  • 类 别:低功耗工控机
详细信息

CPU:Intel Core Duo P8600 CPU
芯片组:Intel GM45+ICH9-M
内存:标准2GB,最大支持8GB
I/O端口:4*RJ45,1*VGA,1*Audio,7*USB,1*PS/2,1*HDMI
串口:2*RS-232,1*RS-232/485,3*RS-232/422/485

看门狗:256级,可编程时间到中断、时间到系统复位
存储空间:1*2.5"SATA盘位,
扩展槽位:2xPCI槽位
电源:DC12V
尺寸:195*210*96 mm(W*D*H)

Processor System CPU Intel® Core™ Duo P8600 (2.4GHz)
Chipset Intel GM45+ICH9-M
BIOS 4Mb AMI BIOS
Memory Max. Capacity On-board 2GB  (up to 8.0GB Max. Capacity )
Socket 2*204Pin DDR3 SO-DIMM
Graphics Controller Intel® 4500MHD
VGA Supports resolution up to 2048x1536
Ethernet LAN 4*10/100/1000 Mbps Ethernet Controller, Support PXE/WOL
Audio Interface 1*Line-out, 1* Mic-in
Storage HDD 1 x SATA HDD Bay for 2.5"
CF NC
Expansion Mini PCIe NC
External I/O Interface Serial Port 2*RS-232, 1*RS-232/485,3*RS-232/422/485
USB 7*USB
PCI 2
SATA 1
LAN 4*RJ45
Display 1*VGA,1*HDMI
Other Watchdog timer Programmable 256 levels timer interval, setup by software
Digital I/O 8-bit programmable (Reserved)
Power Requirements Power Input Votage DC_IN 12V
Power Adapter AC-to-DC Adapter, DC12V/5A 60W (Optional),with DC Jack Plug
Power cable With plug USA type/ Europe type/UK type (by requirement)
Software Support Microsoft Windows XP,Win7/8/10,windows 2008
Linux Support (by project)
General Dimensions (W x Dx H) 198 x 210 x 135mm
Case Colour Black
Mounting Stand/ Wall
Enclosure Aluminum Housing
Thermal Solution Fanless
Environment Operating Temperature -20 ~ 60°C
Storage Temperature -40 ~ 80°C
Relative Humidity 5~ 95%  (non-condensing)
